Terminal Tool User Manual

The Terminal tool is a powerful local tool provided by the Nexent platform that allows agents to execute shell commands on remote servers through SSH connections. The tool supports session management to maintain shell state between commands, uses password authentication for secure connections, and returns command output results. This manual will detail how to configure and use the Terminal tool.

🖥️ SSH Server Setup

The Terminal tool supports two SSH server configuration methods:

Nexent Terminal Container: Use the pre-configured SSH container provided by Nexent (recommended)
Third-party SSH Server: Set up SSH service on existing servers

Method 1: Nexent Terminal Container Configuration

Nexent provides a pre-configured Terminal container with a complete SSH server environment and necessary tools, ready to use out of the box.

1. Image Deployment Methods

Nexent Terminal container supports two deployment methods:

Method A: Deploy Script Auto-Deployment (Recommended)

bash

# Use deploy script for automatic pull and deployment
# Script automatically pulls nexent/nexent-ubuntu-terminal from Nexent Docker repository
# Supports development, production, and cloud server deployment

# Container configuration
Container name: nexent-openssh-server
SSH port: 2222
Working directory: /opt/terminal

Method B: Local Image Build

bash

# Build Ubuntu Terminal image locally
docker build --progress=plain -t nexent/nexent-ubuntu-terminal -f make/terminal/Dockerfile .

📚 Detailed Build Instructions: Refer to Docker Build Guide for complete image build and push processes.

2. Deploy Script Configuration

When running the deployment script, choose to enable the Terminal tool container:

bash

# Run deployment script
cd docker
bash deploy.sh

# During script execution, select:
# 1. Deployment mode: Choose development/production/infrastructure mode
# 2. Terminal tool: Choose "Y" to enable Terminal tool container
# 3. Configure SSH credentials: Enter username and password
# 4. Configure mount directory: Specify host directory mapping

3. Container Features

The Nexent Terminal container includes the following pre-installed tools:

Basic Tools: curl, wget, vim, git
Python Environment: Python3, pip, virtualenv, conda
SSH Configuration: Optimized timeout settings (60-minute sessions)

4. Verify Container Operation

bash

# Check container status
docker ps | grep nexent-openssh-server

# Test SSH connection
ssh -p 2222 root@localhost

# View container logs
docker logs nexent-openssh-server

Method 2: Third-party SSH Server Setup

If you need to set up SSH service on existing servers, you can use the following two methods:

Method A: Container Deployment (Recommended)

Build and start container directly using Dockerfile:

1. Create Dockerfile

dockerfile

FROM ubuntu:24.04

# Set environment variables to avoid interaction
ENV DEBIAN_FRONTEND=noninteractive

# Install openssh-server and common tools
RUN apt-get update && apt-get install -y \
    openssh-server \
    sudo \
    vim \
    bash \
    && rm -rf /var/lib/apt/lists/*

# Create test user and set password
RUN useradd -ms /bin/bash test \
    && echo 'test:test@123' | chpasswd \
    && usermod -aG sudo test

# Set root user password
RUN echo 'root:nexent@123' | chpasswd

# Ensure SSH service directory exists
RUN mkdir /var/run/sshd

# Allow root user to login with password
RUN sed -i 's/#PermitRootLogin prohibit-password/PermitRootLogin yes/' /etc/ssh/sshd_config \
    && sed -i 's/#PasswordAuthentication yes/PasswordAuthentication yes/' /etc/ssh/sshd_config

# Run sshd when container starts
CMD ["/usr/sbin/sshd", "-D"]

2. Build and start container

bash

# Build image
docker build -t nexent-terminal .

# Start container
docker run -d --name nexent-terminal -p 2222:22 nexent-terminal

3. Connection information

SSH Address: localhost:2222
Username: test or root
Password: test@123 or nexent@123
Container name: nexent-terminal

Advantages:

Custom Ubuntu 24.04 environment
Pre-installed common development tools
Supports multi-user access
Containerized isolation, secure and reliable

Method B: Server Configuration

Install and configure SSH service directly on Linux servers:

bash

# Ubuntu/Debian
sudo apt update && sudo apt install openssh-server -y
sudo systemctl start ssh && sudo systemctl enable ssh

# CentOS/RHEL
sudo yum install openssh-server -y
sudo systemctl start sshd && sudo systemctl enable sshd

# Configure SSH (edit /etc/ssh/sshd_config)
sudo nano /etc/ssh/sshd_config
# Ensure the following configuration:
# PasswordAuthentication yes
# Port 22
# PermitRootLogin yes

# Restart SSH service
sudo systemctl restart ssh

Advantages:

Native performance, low resource usage
Complete control over SSH configuration
Suitable for long-term production use

Selection Recommendations

Development/Testing: Recommend container deployment, quick and convenient
Production Environment: Recommend server configuration, better performance
Temporary Use: Recommend container deployment, delete after use

🚀 Tool Features

The Terminal tool provides the following core features:

Basic Features

Remote Command Execution: Execute shell commands through SSH connections
Session Management: Support multiple sessions, maintain shell state
Password Authentication: Use passwords for SSH authentication
Output Cleaning: Automatically clean control characters and prompts from command output

Input Parameters

command: Shell command to execute (required)
session_name: Session name for connection reuse (optional, default "default")
timeout: Command timeout time in seconds (optional, default 30)

Output Format

The tool returns results in JSON format, including:

command: Executed command
session_name: Used session name
output: Command output results
timestamp: Execution timestamp
error: Error information (if execution fails)

⚙️ Terminal Tool Configuration

Configure Terminal Tool in Nexent

Log in to the Nexent platform
Navigate to the Agent Configuration page
Select the agent to configure

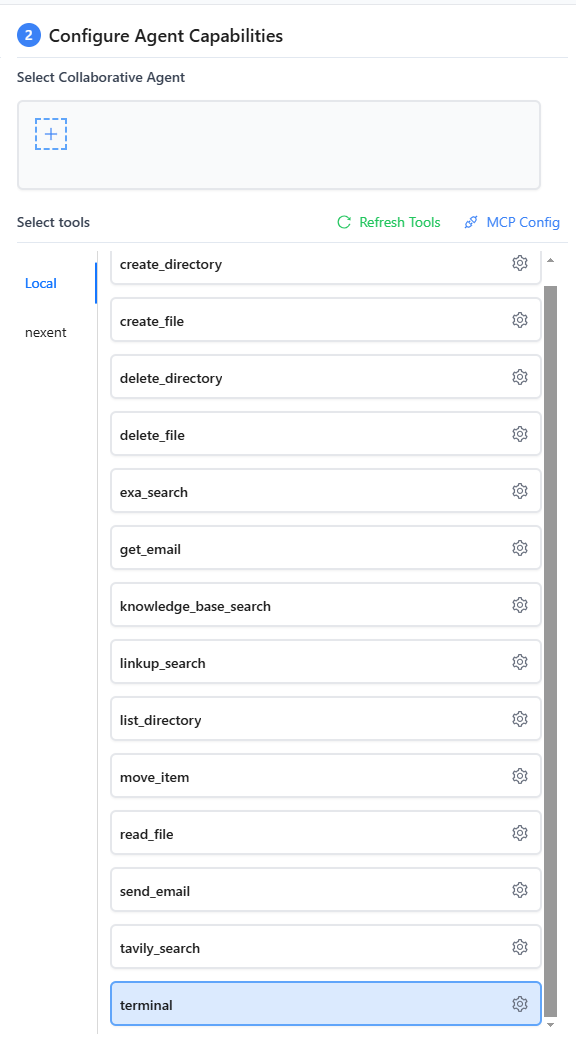

Find "Terminal Tool" in the "Select Agent Tools" tab

Configure SSH Connection Parameters

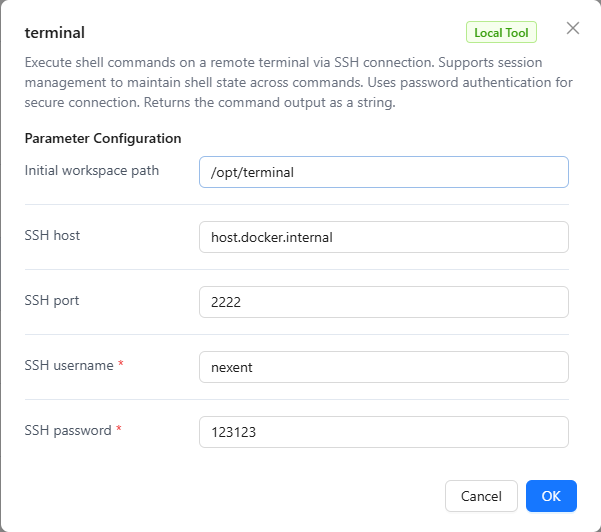

Click the configuration button for the Terminal tool and fill in the following parameters:

Basic Configuration:

ssh_host: SSH server IP address or domain name (Nexent container defaults to nexent-openssh-server)
ssh_port: SSH service port (Nexent container defaults to 2222, third-party servers default to 22)
ssh_user: SSH login username
password: SSH login password
init_path: Initial working directory (defaults to ~)

Configuration Examples

Example 1: Nexent Terminal Container Configuration

json

{
  "ssh_host": "host.docker.internal",
  "ssh_port": 2222,
  "ssh_user": "root",
  "password": "your-container-password",
  "init_path": "/opt/terminal"
}

Example 2: Third-party SSH Server Configuration

json

{
  "ssh_host": "192.168.1.100",
  "ssh_port": 22,
  "ssh_user": "nexent-user",
  "password": "your-secure-password",
  "init_path": "~"
}

🔧 Common Issues

Connection Issues

Q1: What to do if SSH connection times out?

A1: Check the following items:

Nexent Terminal Container:

Whether the container is running normally
Whether port 2222 is occupied
Whether there are error messages in container logs

bash

# Check container status
docker ps | grep nexent-openssh-server

# Check port occupancy
netstat -tlnp | grep :2222

# View container logs
docker logs nexent-openssh-server

# Test container SSH connection
ssh -p 2222 root@localhost

Third-party SSH Server:

Whether network connection is normal
Whether the server SSH service is running
Whether firewall is blocking connection
Whether SSH port is correct

bash

# Check SSH service status
sudo systemctl status ssh

# Check port listening
sudo netstat -tlnp | grep :22

# Test network connectivity
ping your-server-ip
telnet your-server-ip 22

Q2: How to resolve authentication failure?

A2: Check password authentication:

Username: Confirm username is correct
Password: Confirm password is correct, note case sensitivity
Server Status: Confirm SSH service is running normally

bash

# Test SSH connection
ssh -v username@server-ip

# Check SSH service status
sudo systemctl status ssh

Permission Issues

Q3: What to do if command execution has insufficient permissions?

A3: Check user permissions:

Confirm user has permission to execute commands
Check sudo configuration
Verify file system permissions

bash

# Check user groups
groups username

# Check sudo permissions
sudo -l

# Check file permissions
ls -la /path/to/command

Performance Issues

Q4: What to do if command execution is very slow?

A4: Optimization suggestions:

Check server performance
Adjust timeout settings
Optimize command execution method

bash

# Check system load
top
htop

# Check disk usage
df -h
iostat -x 1

Security Issues

Q5: What to do if Nexent Terminal container cannot start?

A5: Check the following items:

bash

# Check Docker service status
sudo systemctl status docker

# Check container configuration
docker-compose config

# View detailed error logs
docker-compose logs nexent-openssh-server

# Restart container
docker-compose restart nexent-openssh-server

# Check environment variable configuration
cat .env | grep -E "(SSH_USERNAME|SSH_PASSWORD|TERMINAL_MOUNT_DIR)"

Common Solutions:

Ensure Docker service is running normally
Check if port 2222 is occupied by other services
Verify environment variable configuration is correct
Check mount directory permissions

Q6: How to improve SSH security?

A6: Security hardening measures:

Nexent Terminal Container:

Regularly update container images
Limit access permissions to mount directories
Monitor container resource usage
Regularly backup important data

Third-party SSH Server:

Use strong passwords
Change default SSH port
Configure IP whitelist
Enable fail2ban protection

bash

# Install fail2ban
sudo apt install fail2ban -y

# Configure fail2ban
sudo nano /etc/fail2ban/jail.local

# Add SSH protection configuration
[sshd]
enabled = true
port = ssh
filter = sshd
logpath = /var/log/auth.log
maxretry = 3
bantime = 3600

🚀 Next Steps

After completing Terminal tool configuration, you can:

Agent Configuration - Add Terminal tool to agents
Chat Interface - Use Terminal tool through agents to execute server management tasks

If you encounter any issues during configuration, please refer to our FAQ or join our Discord Community for support.

Terminal Tool User Manual ​

🖥️ SSH Server Setup ​

Method 1: Nexent Terminal Container Configuration ​

1. Image Deployment Methods ​

Method A: Deploy Script Auto-Deployment (Recommended) ​

Method B: Local Image Build ​

2. Deploy Script Configuration ​

3. Container Features ​

4. Verify Container Operation ​

Method 2: Third-party SSH Server Setup ​

Method A: Container Deployment (Recommended) ​

1. Create Dockerfile ​

2. Build and start container ​

3. Connection information ​

Method B: Server Configuration ​

Selection Recommendations ​

🚀 Tool Features ​

Basic Features ​

Input Parameters ​

Output Format ​

⚙️ Terminal Tool Configuration ​

Configure Terminal Tool in Nexent ​

Configure SSH Connection Parameters ​

Configuration Examples ​

Example 1: Nexent Terminal Container Configuration ​

Example 2: Third-party SSH Server Configuration ​

🔧 Common Issues ​

Connection Issues ​

Q1: What to do if SSH connection times out? ​

Q2: How to resolve authentication failure? ​

Permission Issues ​

Q3: What to do if command execution has insufficient permissions? ​

Performance Issues ​

Q4: What to do if command execution is very slow? ​

Security Issues ​

Q5: What to do if Nexent Terminal container cannot start? ​

Q6: How to improve SSH security? ​

🚀 Next Steps ​

Terminal Tool User Manual

🖥️ SSH Server Setup

Method 1: Nexent Terminal Container Configuration

1. Image Deployment Methods

Method A: Deploy Script Auto-Deployment (Recommended)

Method B: Local Image Build

2. Deploy Script Configuration

3. Container Features

4. Verify Container Operation

Method 2: Third-party SSH Server Setup

Method A: Container Deployment (Recommended)

1. Create Dockerfile

2. Build and start container

3. Connection information

Method B: Server Configuration

Selection Recommendations

🚀 Tool Features

Basic Features

Input Parameters

Output Format

⚙️ Terminal Tool Configuration

Configure Terminal Tool in Nexent

Configure SSH Connection Parameters

Configuration Examples

Example 1: Nexent Terminal Container Configuration

Example 2: Third-party SSH Server Configuration

🔧 Common Issues

Connection Issues

Q1: What to do if SSH connection times out?

Q2: How to resolve authentication failure?

Permission Issues

Q3: What to do if command execution has insufficient permissions?

Performance Issues

Q4: What to do if command execution is very slow?

Security Issues

Q5: What to do if Nexent Terminal container cannot start?

Q6: How to improve SSH security?

🚀 Next Steps
